ORBITRUEPortable flange facing machines
ORBITRUE is the Maucotools family of flange facing machines: they clamp in the bore, orbit around the axis and re-machine the sealing face directly on the plant, without dismantling the line.
Six sizes cover flanges from 1" to 80". The model number is the maximum facing diameter in inches: choose the size by diameter, then the drive.
6
sizes
1–80"
facing diameter
5
drives
HOW IT WORKS
IT ORBITS AROUND THE FLANGE AXIS

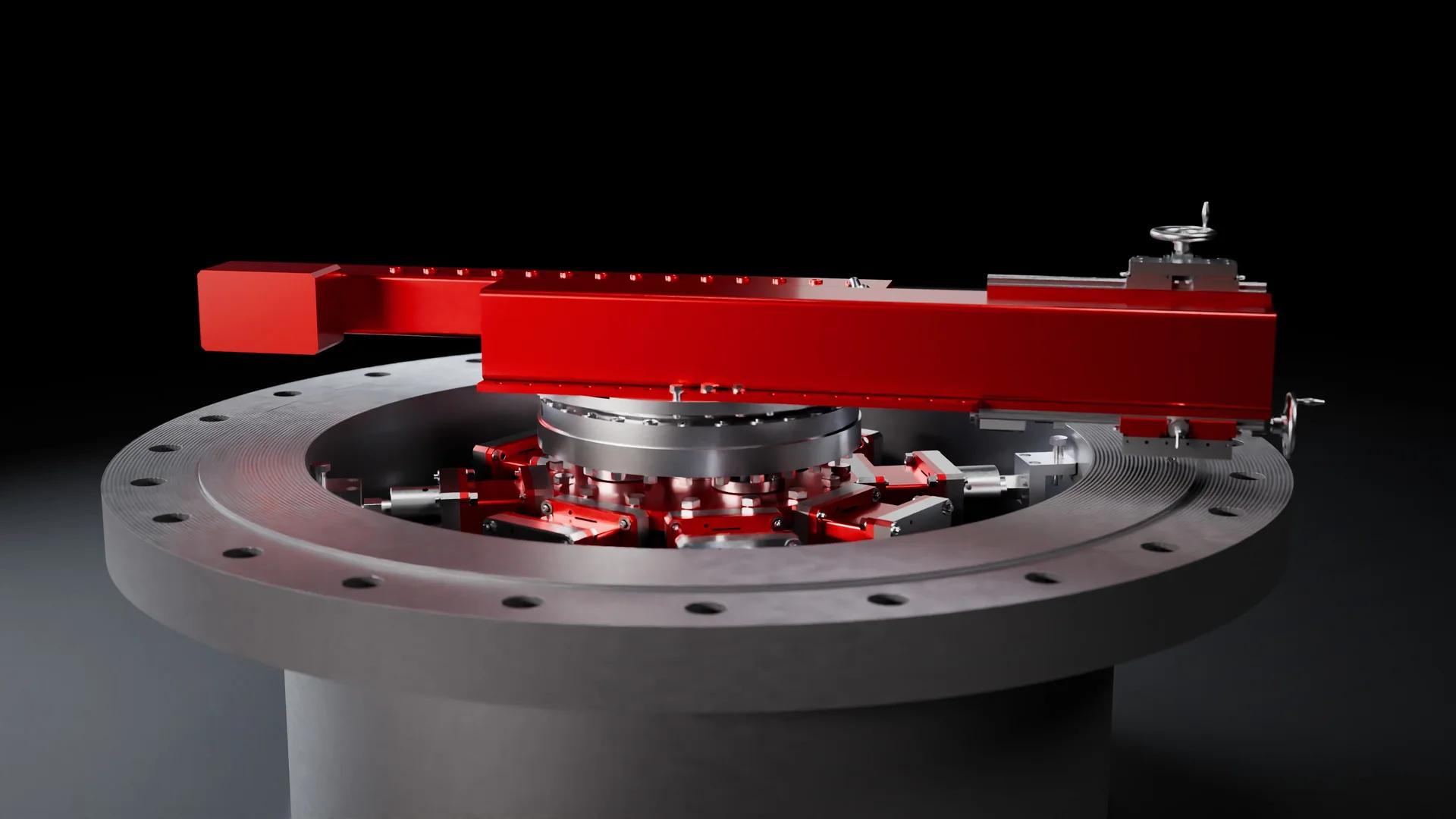

The principle is the same across the family, from the 19" manual to the 80" motorised machine: a fixed axis in the bore, a rotating arm, a tool feeding radially.
It clamps in the bore
Mounting is internal (ID mount): the machine centres and locks in the flange bore, which becomes the axis of rotation. No external reference to build.
The arm orbits
The arm rotates around the axis, by hand on the ORBITRUE 19 Manual and motor-driven on the motorised sizes, carrying the tool across the whole face.
The tool leaves a spiral
At every revolution the tool feeds radially: the result is the continuous spiral (“phonographic”) finish required on gasketed sealing faces.
THE RANGE
SIX SIZES, FROM 1" TO 80"
Start from the diameter of the face to be machined: each bar is the facing range of one size. Where two sizes overlap, choose by drive and by the space available.
- ORBITRUE 19 ManualØ 25–482 mm
- ORBITRUE 6Coming soonØ 25–152 mm
- ORBITRUE 16Coming soonØ 25–406 mm
- ORBITRUE 24Coming soonØ 300–600 mm
- ORBITRUE 40 Switch SystemØ 457–1016 mm
- ORBITRUE 80 Switch SystemØ 1016–2032 mm
Logarithmic diameter scale. For sizes marked “coming soon”, ask our sales team about availability and lead times.
Ø 25–482 mm

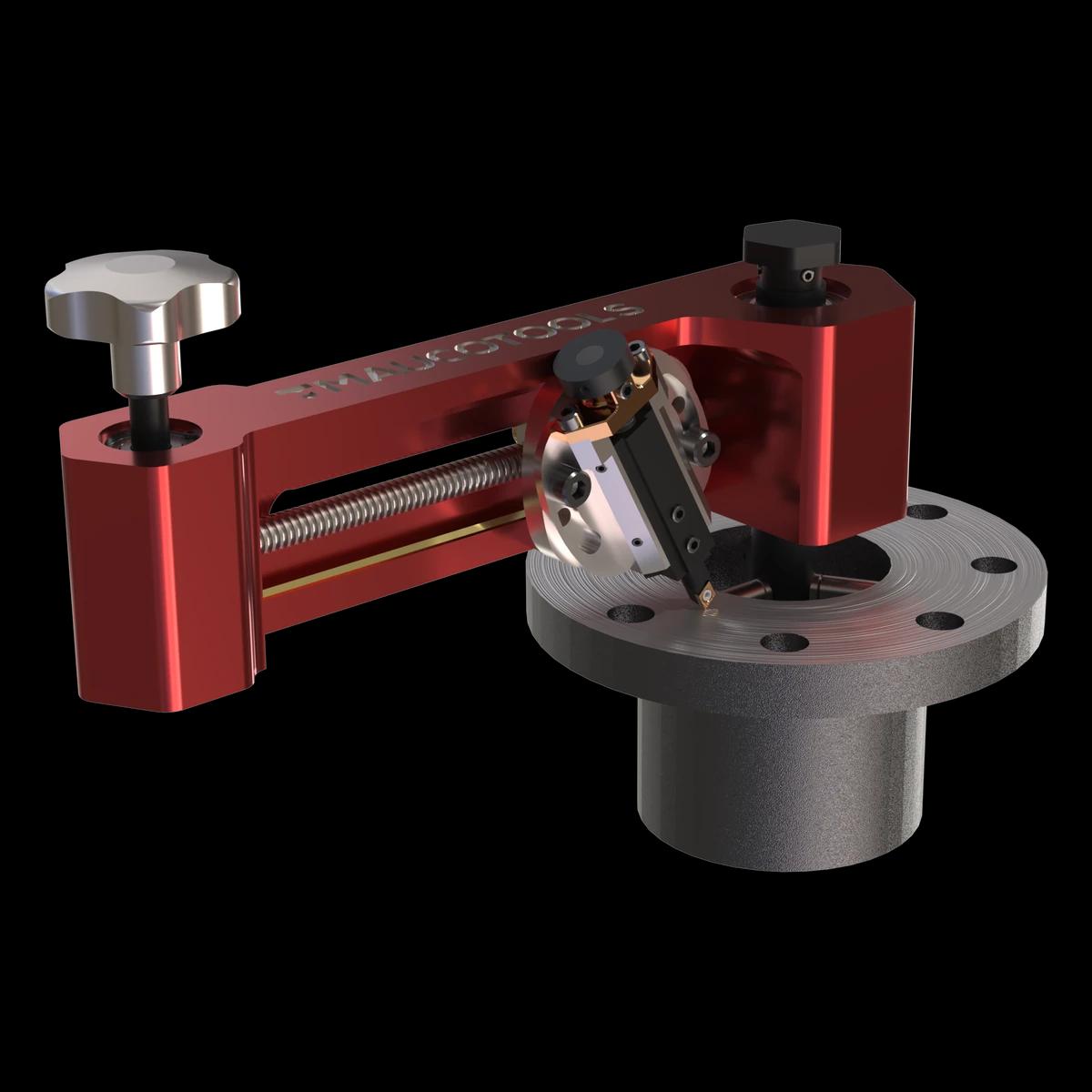

ORBITRUE 19 Manual
Re-faces flange sealing faces from 1" to 19" directly on the plant, with no motor and no power supply.
See the product page
Ø 457–1016 mm

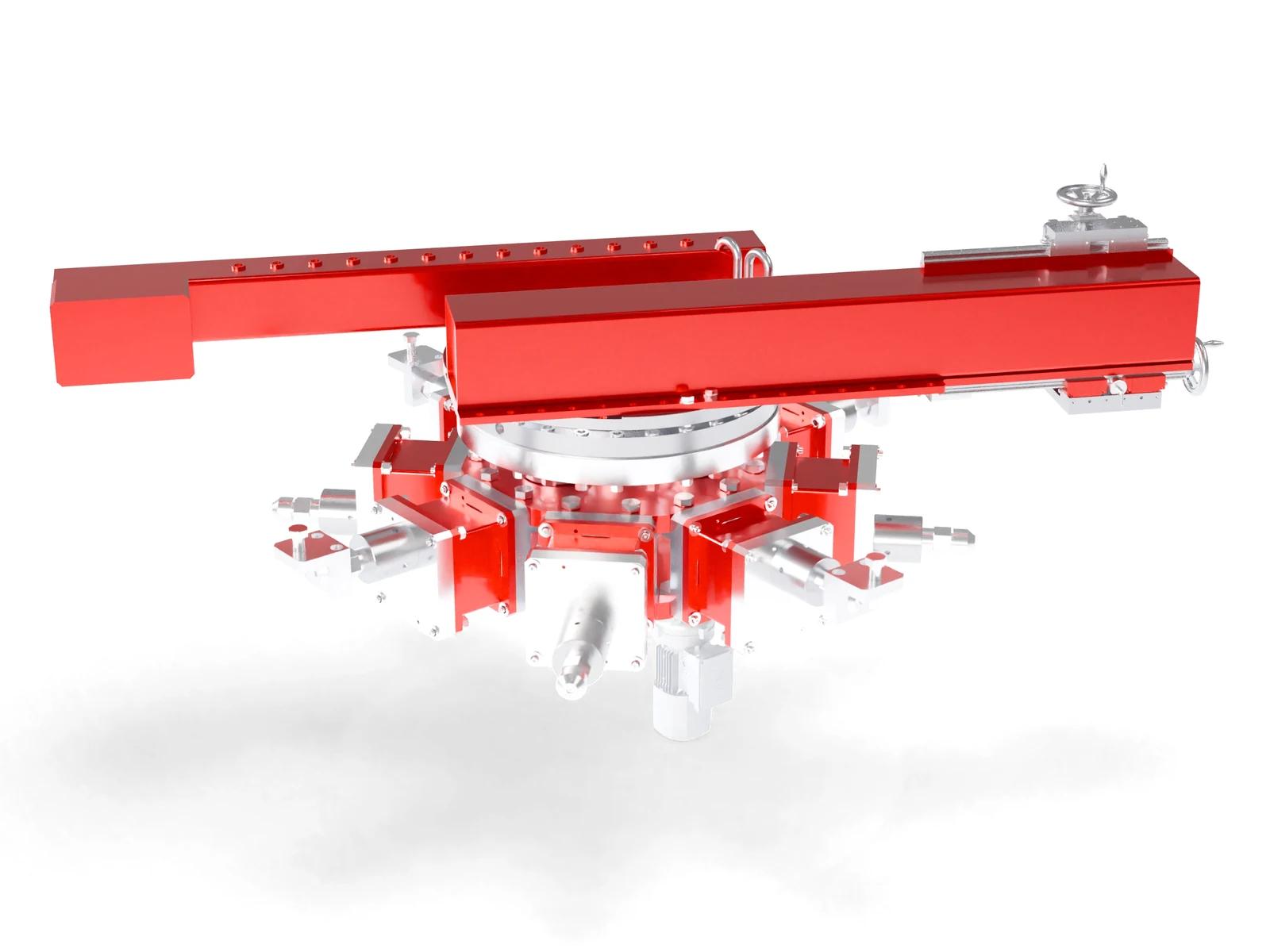

ORBITRUE 40
Facing, chamfering and bevelling of flanges from 18" to 40" (Ø 457–1016 mm), horizontally or vertically.
See the product page
Ø 1016–2032 mm

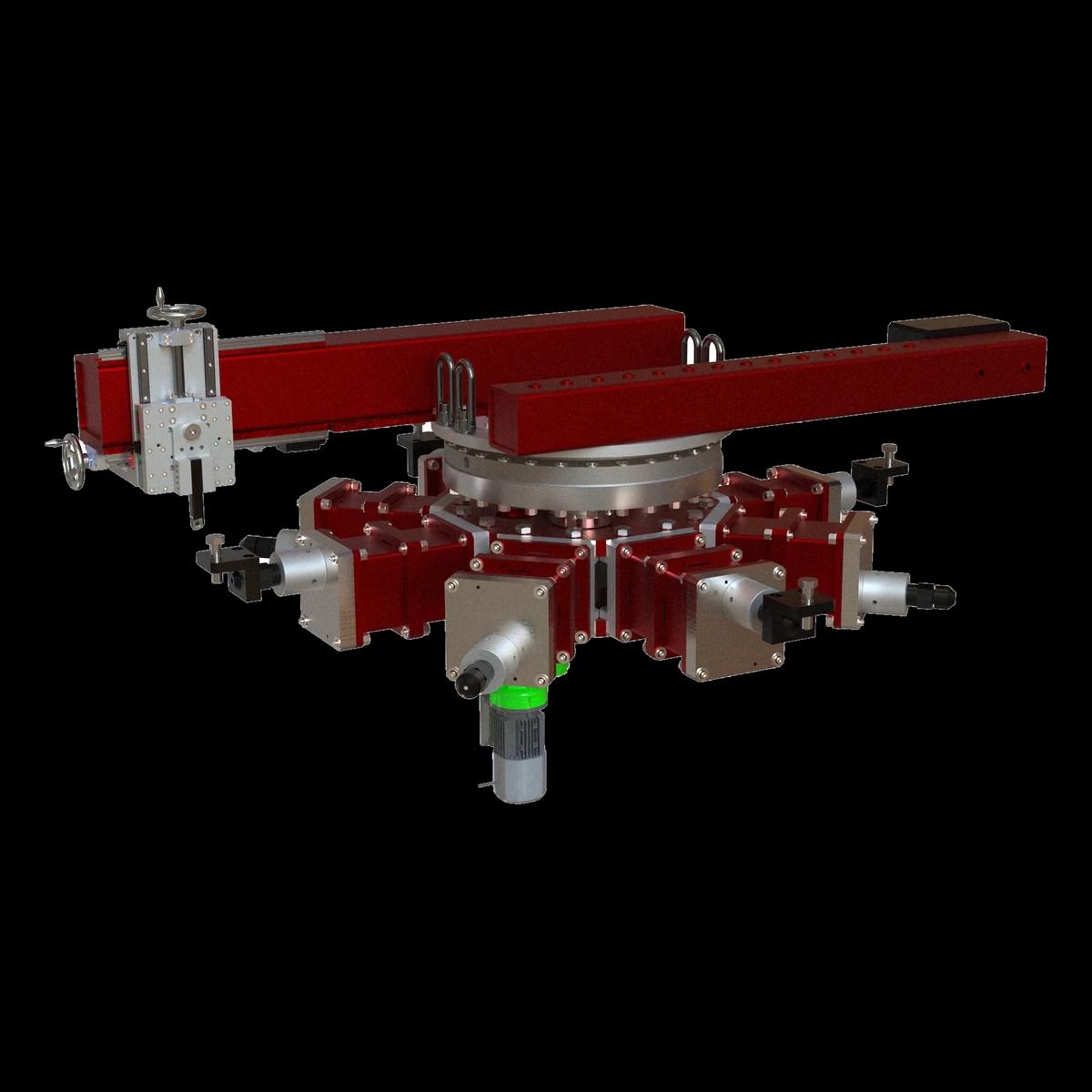

ORBITRUE 80
Facing, chamfering and bevelling of flanges from 40" to 80" (Ø 1016–2032 mm), horizontally or vertically.
See the product pageMANUAL OR MOTORISED
TWO WAYS OF WORKING
Manual: it goes anywhere
ORBITRUE 19 Manual is hand-operated: no power supply, a 331 × 191 mm footprint, transport in a carrying case. It is the machine for small and medium flanges and for quick maintenance jobs.
- Facing Ø 25–482 mm (1"–19")
- Bore clamping Ø 25–152 mm
- No motor, no cables, no hoses
Motorised: productivity and large diameters
Five motorised sizes cover flanges from 1" to 80". Rotation and feed are constant, so the finish is repeatable from one revolution to the next and from one flange to the next.
- Facing up to Ø 2032 mm (80")
- Four drives for every size
- Sizes 40 and 80 are on the Switch System platform
DRIVES
Electric, pneumatic, hydraulic or CNC
Every motorised size is available with four drives: the mechanics do not change, you choose the energy available on site.
Electric
Electric gearmotor: the simplest choice in the workshop and on site, wherever mains power is available.
Pneumatic
Compressed-air motor, for plants where the available energy is the air line.
Hydraulic
Hydraulic motor with power pack: high torque and continuously adjustable speed.
CNC
Numerically controlled motorised axes, for repeatable cycles and programmed profiles.
SWITCH SYSTEM PLATFORM
THE LARGE SIZES ARE ALSO ANOTHER MACHINE
ORBITRUE 40 and ORBITRUE 80 are built on the Switch System: with the Switch Kit the flange facing machine turns into a large-diameter line boring machine, and back again. Whoever buys the flange facer already owns the core of a second machine.
Discover the Switch SystemVIDEO
WATCH THEM IN ACTION
APPLICATIONS
WHERE IT IS USED
Oil & gas and petrochemical
Line flanges, valves and nozzles: restoring the sealing face during shutdowns and maintenance, without taking the part to the workshop.
Power and process
Heat exchangers, pressure vessels, pumps and turbines: large-diameter flanges machined in place.
Marine and offshore
On-board piping and equipment, where dismantling and transport cost more than the job itself.
Maintenance and service
Mobile workshops and maintenance contractors: a scored or corroded face is recovered on site.
FREQUENTLY ASKED QUESTIONS
BEFORE YOU CHOOSE
It re-machines the sealing face of a flange damaged by corrosion, scoring or distortion, directly on the plant. The machine clamps in the flange bore, orbits around its axis and restores flatness and surface finish without dismantling the line.
GOT A FLANGE TO RESTORE?
WE WILL POINT YOU TO THE RIGHT SIZE.
Tell us diameter, material and position: we reply with model, drive and quotation.
