ACCESSORIES - DUAL SYSTEM SERIES
FK SERIES
FACING KITS

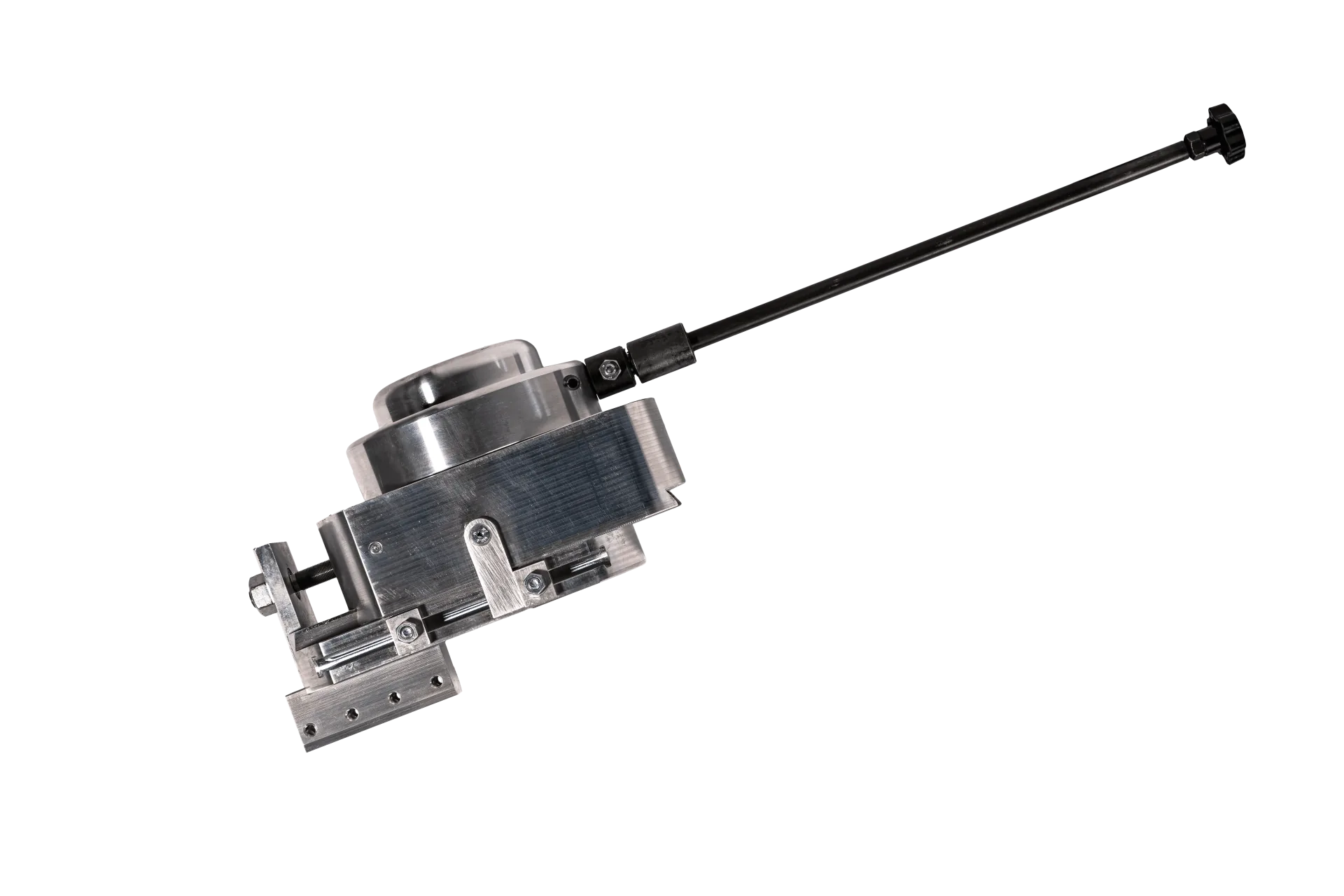

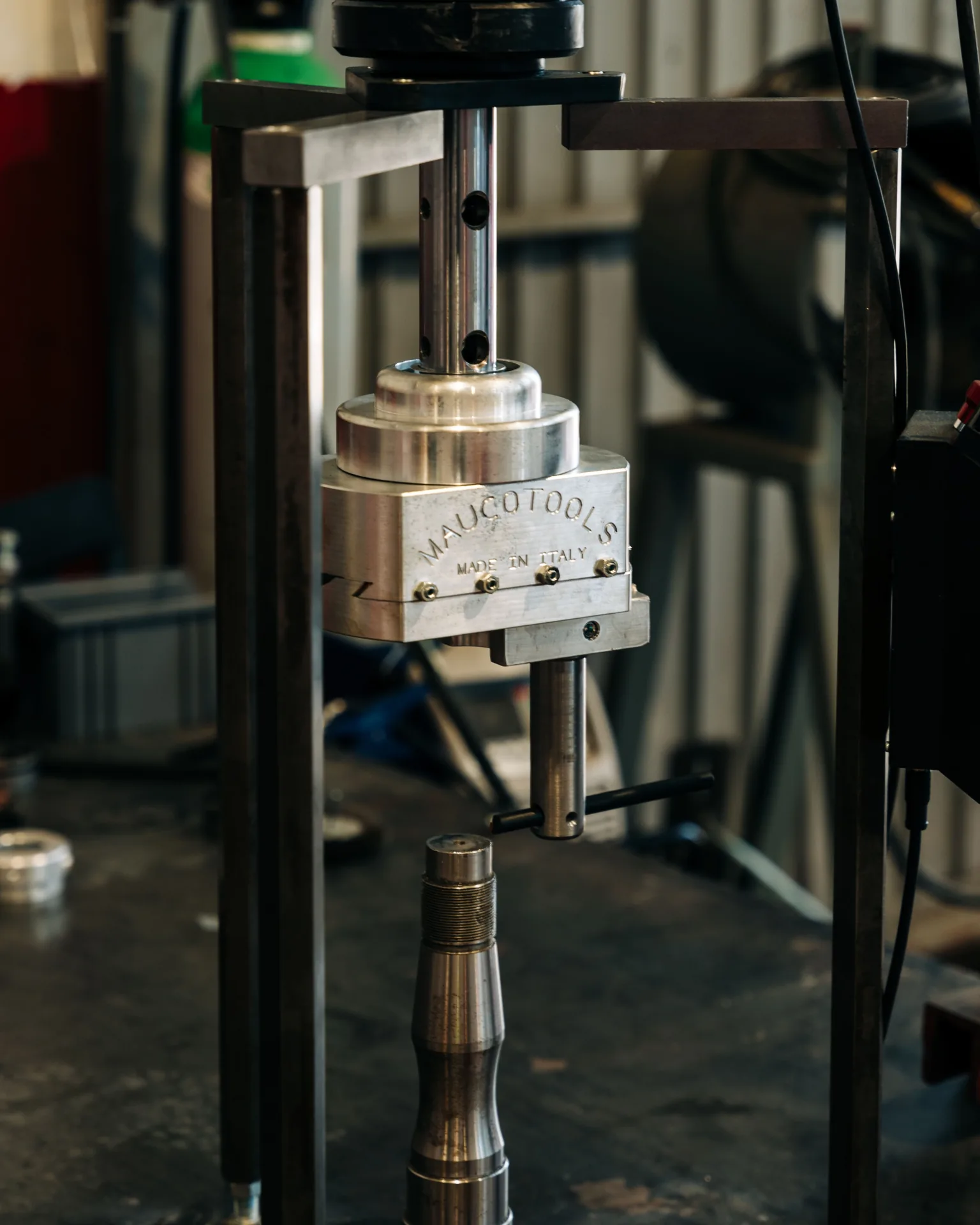

The MAUCOTOOLS Facing Kit transforms your boring machine into a precision facing machine. Usable with all MAUCOTOOLS portable boring machines and also compatible with machines from other brands on the market.
DUAL SYSTEM INTEGRATION

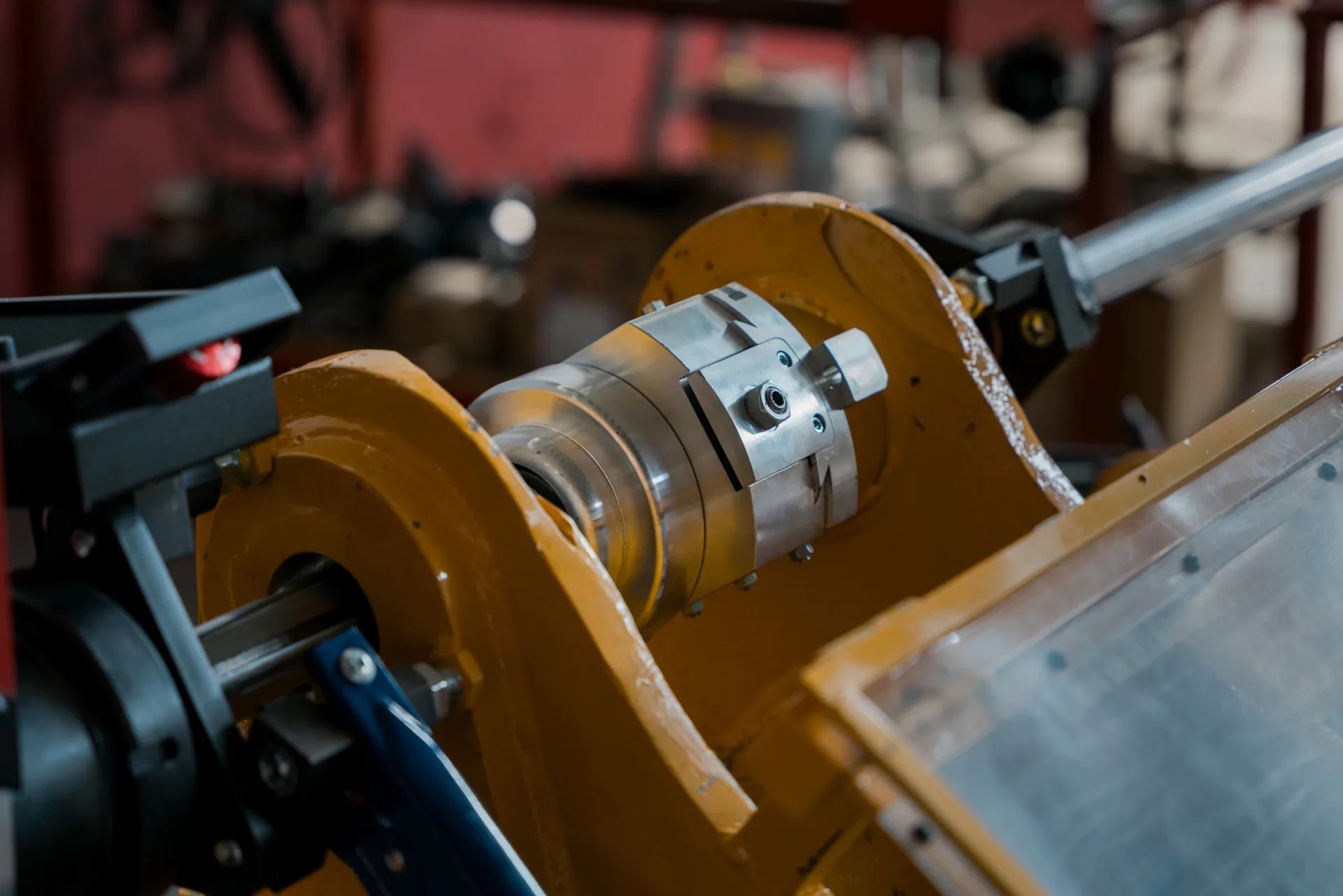

It mounts directly onto the rotation module of your DUAL SYSTEM portable boring machine, using only the motorization of the rotation module.
CERTIFICATION & QUALITY
Designed and manufactured entirely in Italy with high-quality components. ISO 9001:2015 certified precision.
TECHNICAL FOCUS
KIT ADVANTAGES
Precision Facing
Enables facing and Seeger seat creation with micrometric tolerances across a wide range of diameters.
Quick Setup
Assembly and disassembly in minutes thanks to the quick-attach system compatible with all tool bars.
Total Versatility
Compatible with all LBM DUAL SYSTEM models. One kit for multiple industrial applications.
Industrial Robustness
High-strength steel construction ensuring rigidity and durability even in the most demanding operating conditions.
TECHNICAL SPECIFICATIONS
FACING KIT MODEL COMPARISON
| Tool Bar | FK250 | FK400 | FK600 | FKX (NEW) |
|---|---|---|---|---|
| Tool Bar | 40mm (1.57") | 40mm (1.57") | 40mm (1.57") | 60mm (2.36") |
| Ø Min Facing | 45mm (1.77") | 45mm (1.77") | 45mm (1.77") | 62mm (2.44") |
| Ø Max Facing | 250mm (9.84") | 400mm (15.74") | 600mm (23.62") | 600mm (23.62") |
| Seeger Seat Creation | Optional with FKSS Kit | Optional with FKSS Kit | Optional with FKSS Kit | Optional with Extra Kit |
| External Turning | Optional with Extra Kit | Optional with Extra Kit | Optional with Extra Kit | Optional with Extra Kit |
| Weight | 17 Kg | 17.5 Kg | 18.6 Kg | 25 Kg |
COMPATIBILITY
All Facing Kits are compatible with LBM DUAL SYSTEM series boring machines. The FKX version is specifically designed for the LBM600X.
EXTEND THE APPLICATIONS
TWO KITS THAT DO MUCH MORE
The FK Series Facing Kit is the starting point. With the expansion kits the same portable boring machine also cuts Seeger ring grooves and turns external diameters: no extra equipment to carry on site, no second set-up of the workpiece.
SEEGER GROOVE KIT
The FKSS Kit is added to the FK Series Facing Kit and cuts the Seeger ring groove right after facing, in the same set-up and off the same rotation reference. It is the accessory that completes a seat repair: face the shoulder, cut the groove, reassemble.
- Facing and Seeger groove without removing the machine from the workpiece
- Available for the FK250, FK400 and FK600 models
- Same micrometric accuracy as the facing kit
EXTERNAL TURNING KIT
Kit for carrying out external turning with the MAUCOTOOLS FK Series Facing Kit. Together with the facing kit it is compatible with all tool-holder shafts with a 40 mm diameter. Three versions are available, chosen by the maximum diameter to be machined.
- Tool-holder bar
- 40 mm (1.57")
- Machining Ø
- Ø50 – Ø400 mm
- Lengths
- up to 200 mm (7.87")
| CODE | VERSION | MACHINING Ø | EXTENSIONS | TOOL HOLDERS | SPACERS |
|---|---|---|---|---|---|
| KTEP | SMALL | Ø50 – Ø200 mm | 1 | 3 | 9 |
| KTEM | MEDIUM | Ø50 – Ø300 mm | 1 | 3 | 9 |
| KTEB | BIG | Ø50 – Ø400 mm | 2 | 3 | 9 |
Tool holders L = 50 · 100 · 200 mm in every version.
Spacers for support: 3 × 260 mm + 3 × 360 mm + 3 × 560 mm.
Facing Kit not included: the KTE kits are added to an FK Series Facing Kit.
CONFIGURE YOUR FACING KIT
Contact us for any request or for a custom configuration of your Facing Kit: we'll help you choose the best solution for your facing and Seeger seat operations.
